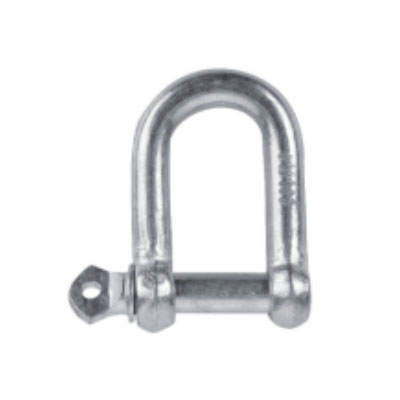

Fitur tipe Galv.Dee Shackle Eropa Komersial
Bahan Q235
Baja Tempa
Perawatan Permukaan: Warna diri, seng lipit, Hot dip dalvanized,
Seng pelapisan kromium trivalen, pelapis bubuk
Komersial Galv.Dee ShackleFitur
tipe eropa
Bahan Q235
Baja Tempa
Perawatan Permukaan: Warna diri, seng lipit, Hot dip dalvanized,
Seng pelapisan kromium trivalen, pelapis bubuk
Komersial Galv.Dee Shackle Spesifikasi
| Ukuran | D | d | B | H | SWL | |
| mm | mm | mm | mm | mm | ton | |
| 4 | 4 | 4 | 8 | 14 | / | |
| 5 | 5 | 5 | 10 | 19 | 0.08 | |
| 6 | 6 | 6 | 12 | 24 | 0.1 | |
| 8 | 8 | 8 | 16 | 32 | 0.2 | |
| 10 | 10 | 10 | 20 | 40 | 0.32 | |
| 11 | 11 | 11 | 22 | 44 | 0.4 | |
| 12 | 12 | 12 | 25 | 48 | 0.52 | |
| 14 | 14 | 14 | 28 | 56 | 0.645 | |
| 16 | 16 | 16 | 32 | 64 | 0.8 | |
| 18 | 18 | 18 | 36 | 71 | 1 | |
| 20 | 20 | 20 | 44 | 1.1 | 76 | |
| 22 | 22 | 22 | 44 | 85 | 1.5 | |
| 25 | 25 | 24 | 50 | 95 | 2.1 | |
| 28 | 28 | 27 | 56 | 106 | 3 | |
| 32 | 32 | 33 | 64 | 120 | 3.5 | |
| 35 | 36 | 36 | 76 | 130 | 4 | |
| 38 | 38 | 39 | 76 | 145 | 5 | |
| 42 | 42 | 42 | 76 | 145 | 6 | |
| 45 | 45 | 45 | 80 | 155 | 7 | |
| 50 | 50 | 52 | 90 | 175 | 8 | |
